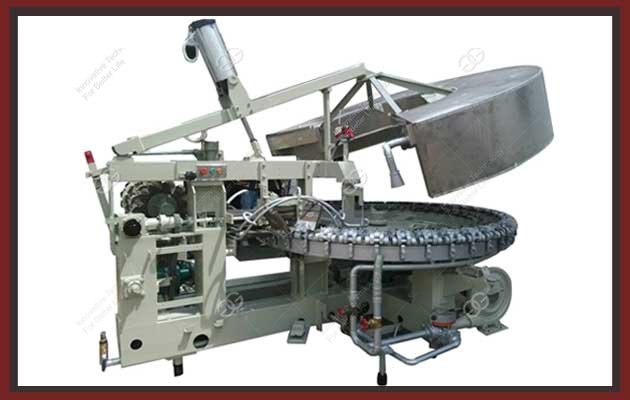

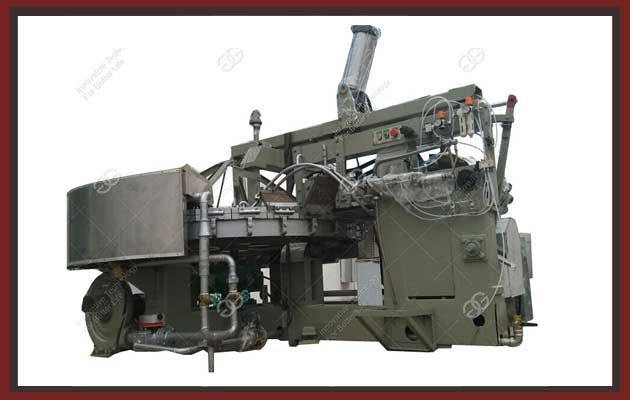

Full Automatic Rolled Sugar Cone Machine
| Brand: | GELGOOG MACHINERY |
| Certification: | CE |
| PAY METHOD: | WEST UNION L/C T/T CASH |
| Warranty Time: | 12 Months |
| LOADING PORT: | Qingdao Port |
| Country Of Origin: | China |
Features of Full Automatic Rolled Sugar Cone Machine:
The full automatic rolled sugar cone machine is used for rolling sugar cones. It offer cones to the next process to be filled with ice cream. First it dispenses batter on the baking plates to prepare the wafers for shaping, then rolls them up, keep them in shape unload them finally. It is the main device of the production line, excellent performances have allowed intemational standards to be comfortably met.
1. rated capacity: 2500pcs/h, if you need other capacity, you can call me.
2. automatic sugar cone machine
3. natural gas or lpg heating
4. outline dimension: 3200*2700*1900mm
4. outline dimension: 3200*2700*1900mm
| Model | GG25 | |
| Voltage | 380V | |
| Power | 1.5Kw | |
| Gas consumption | 4Kg/h (4.2m³/h) | |
| Compressed air pressure | 0.6MPa | |
| Weight | 3000Kg | |
| Overall size (mm) | 3200*2700*1900 | |
| Product size (22.5 degrees) | caliber | 42-48mm |
| length | 100-115mm | |
| capacity | 2500pcs/h | |
| Product size (17.5 degrees) | caliber | 38-44mm |
| length | 110-125mm | |
| capacity | 2500pcs/h | |
